Elliptic disposable / single use bimnual system BSD 600
Based on 21G, elliptic cannual system:
● Major axis outer diameter 0.94mm, inner diameter 0.74mm
● miner axis outer diameter 0.62mm, inner diameter 0.42mm

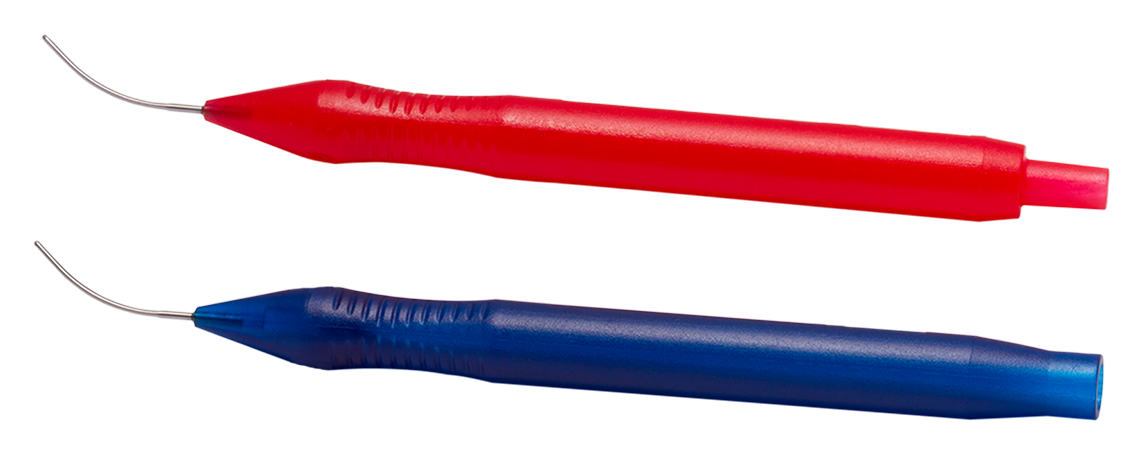

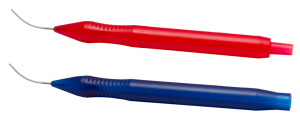

1 Irrigation handpiece with curved cannula proximal
TWIN-PORT with diameter of 0.55mm per port
1 Aspiration handpiece with curved cannula,
elliptic port 0.30mm, roughened tip
Product features:
● Single use / no risk of cross contamination
● Lightweight, colour-coeded handpieces
● Standard male/female luer connector
● Compatible with Phaco or I/A system
● Smooth bullet shaped tip
● Swiss design / Swiss made
Important user information
The BSD 600 system of Bürki is an elliptic I-/A-System. The higher impermeability due to the elliptic canula forms in the paracentesis leads to substantial less efflux. In consequence the inner eye pressure can increase substantially.
To prevent any damage to the eye, a reduced height of the irrigation liquid bottle is strongly recommended and the pressure conditions must stay in the permanent focus of observation and, if necessary, adjustment. Nevertheless it’s important to prevent any collapse of the eye.
Visit „Downloads“ for more details and product flyers.
